Standard color choice or optional

Soundproof/weathproof canopy

The third generation of Baifa soundproof generating sets has well improved in design.

Soundproof canopy are guaranteed to have at least 30% noise level reduction compare to open type generator at FULL load.

example: BF-C550 open type noise level 109dB(A)

>BF-C550s soundproof canopy type noise level 72dB(A)

significant change from very loud to moderate loud or some in normal conversation noise

(as tested)

Source of generator set noise produced by six major sources

• Engine noise – from 100 dB(A) to 121 dB(A)

• Cooling fan noise – from 100 dB(A) to 105 dB(A)

• Alternator noise – from 80 dB(A) to 90 dB(A)

• Induction noise – from 80 dB(A) to 90 dB(A)

• Engine exhaust – from 120 dB(A) to 130 dB(A)

• Structural/mechanical noise – caused by mechanical vibration

Choose of material and canopy structure is the key to lower and noise.

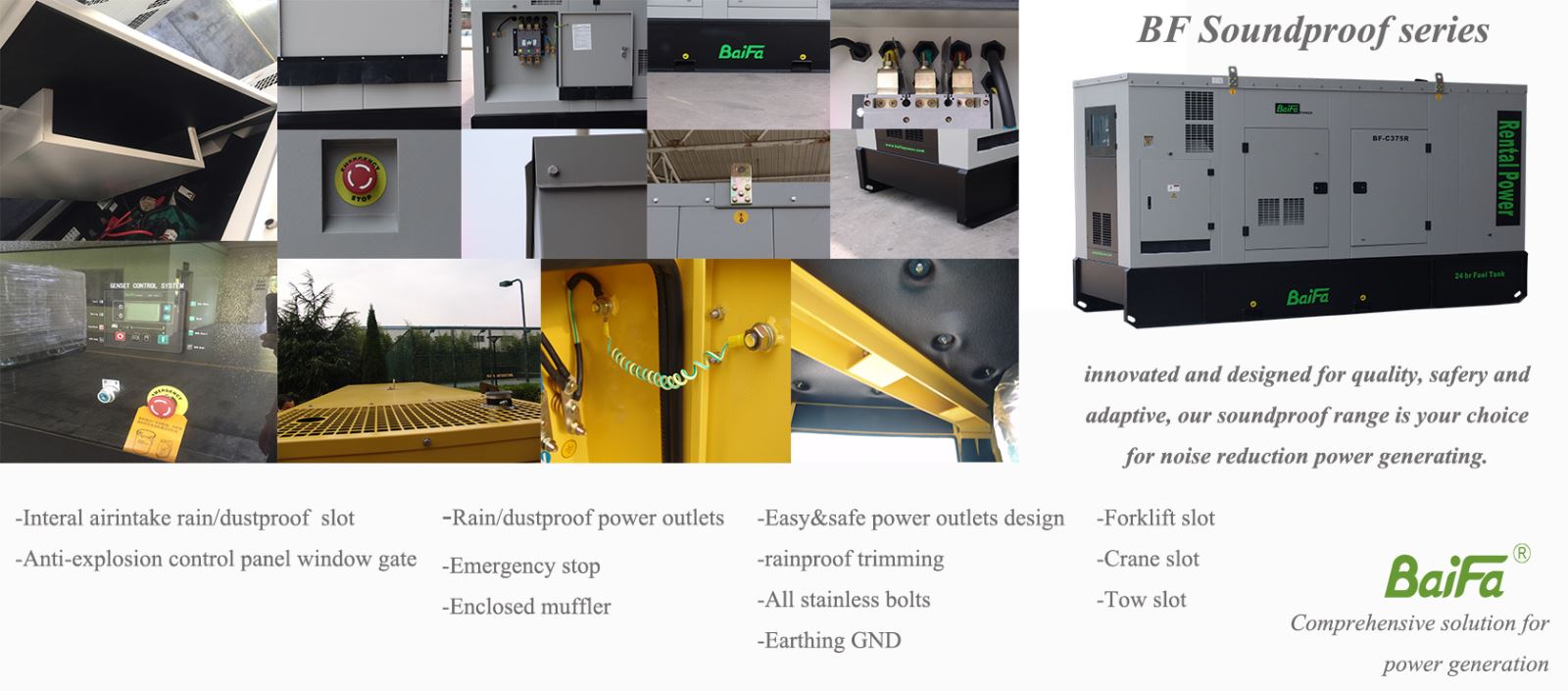

All series of soundproof generator sets can be lifted from eye lifting hooks on the top
Better painting job, tough paint suitable for all weather conditions and avoids rusting for long period of time
More compact and strength structure, muffle built-in lower noise level No traditional bottom air intake design; avoid dusts and other impurities inhalation. Enlarged the area of air intake and discharge
Separated output cable box, easy for cable connections Adapt to all weather condition
